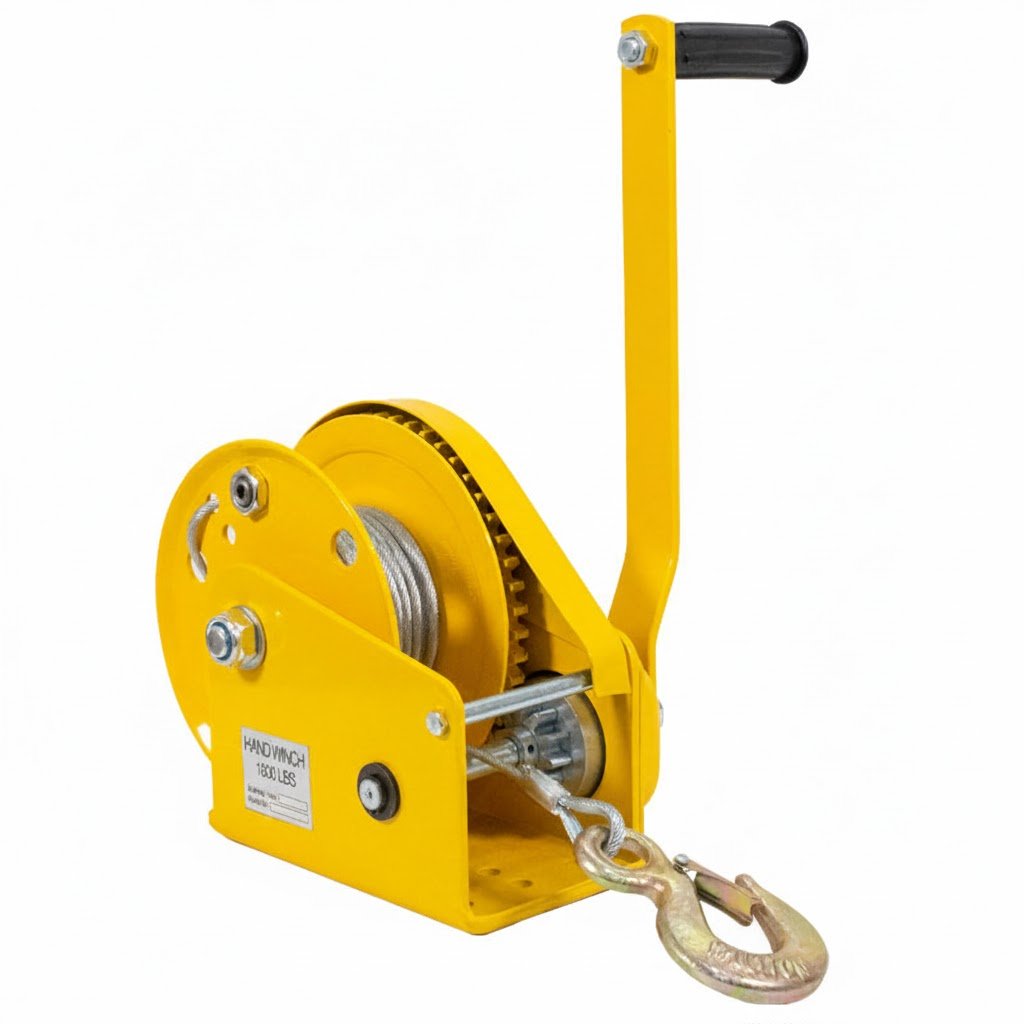

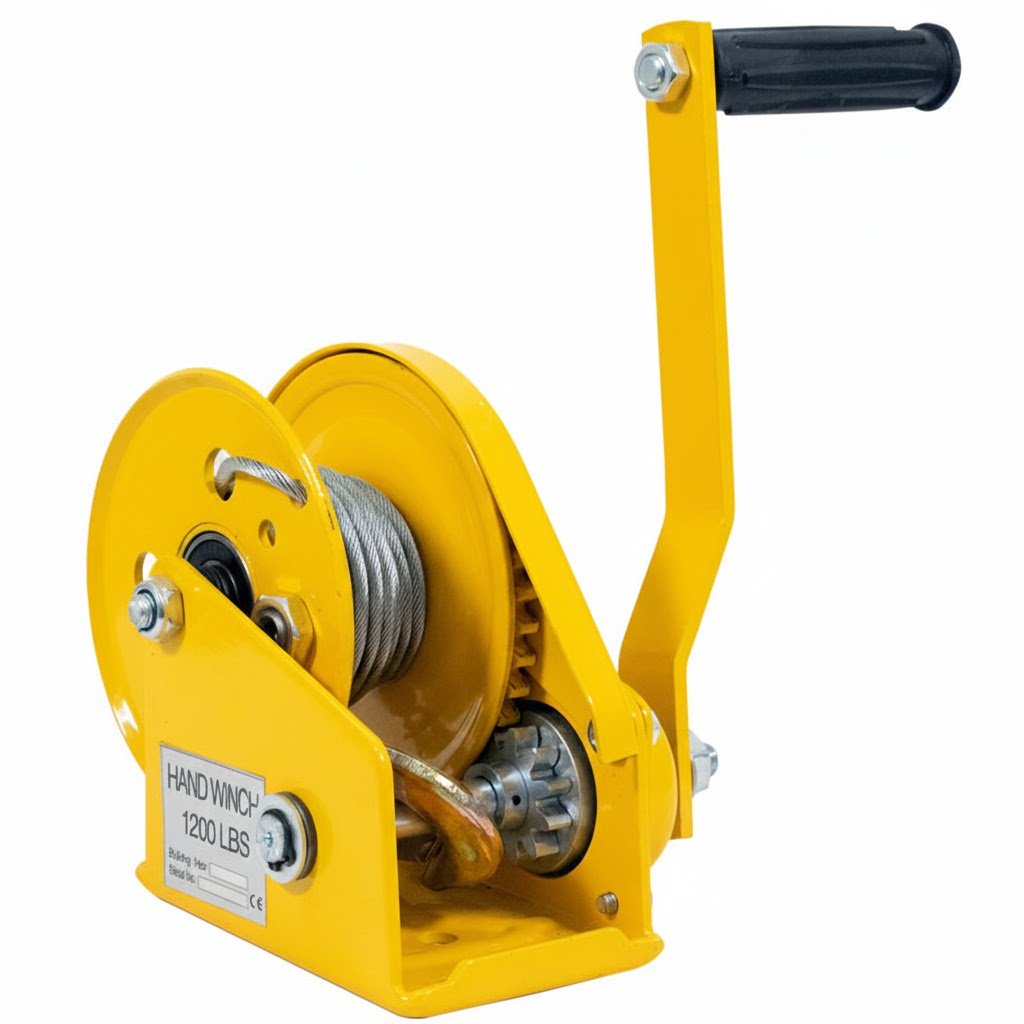

Hand Cranked Winch: Smooth 360° Rotation for Precise Pulling
The Hand Cranked Winch is a versatile and lightweight manual tool designed for easy operation in various environments. Unlike standard winches, this model can rotate 360 degrees without jamming, making it incredibly flexible for complex pulling tasks. Built with high-end imported steel, the Hand Cranked Winch offers a fine texture and precise material strength. As a professional lifting equipment supplier , CloudHub ensures that every winch is durable and ready for heavy-duty use.
Exceptional Build Quality and Features (提示：设置为 H3 标签)
Our Hand Cranked Winch is engineered for safety and ease of use:
Automatic Brake System: Equipped with an automatic brake for simple and safe operation. The easy hand-pull mechanism ensures you remain in control at all times.
Imported Thickened Steel: We select imported, thickened steel to ensure the frame is durable and resistant to deformation.

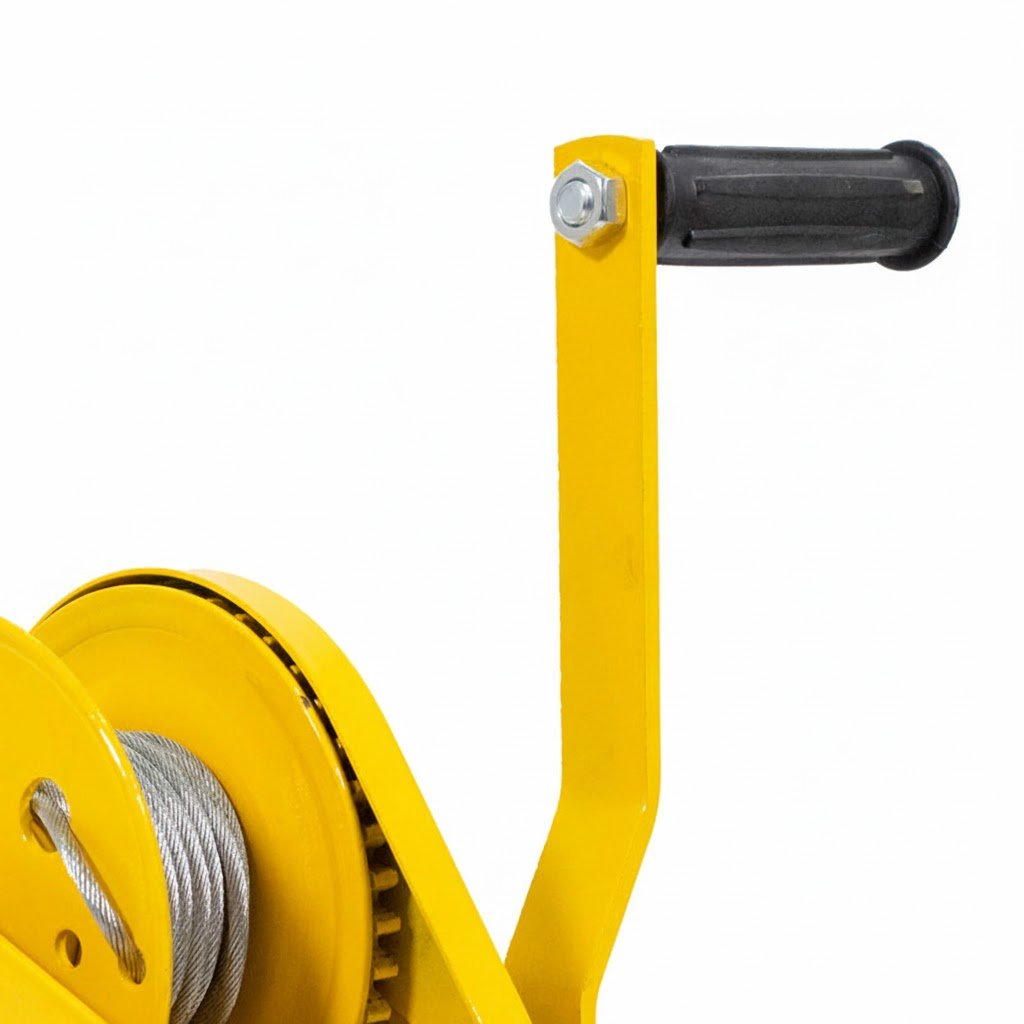

Adjustable Handle: The handle length is adjustable, allowing you to modify it at will to suit your strength and space requirements.
Smooth Mechanism: The clear grain and fine texture of the internal steel components provide a friction-less experience.
Perfect for Versatile Manual Control
Whether you need a winch for transverse traction or longitudinal tension, this Hand Cranked Winch provides reliable manual control. Its compact size makes it perfect for both industrial and residential projects. For companies looking to expand their inventory, we provide high-quality wholesale lifting equipment with competitive factory pricing.
Why Choose CloudHub for Your Winch Needs?
At CloudHub, we focus on the details that matter. From the 10mm mounting holes for secure installation to the 360-degree jam-free rotation, our Hand Cranked Winch is built to outperform. We are a leading provider of wholesale lifting equipment to distributors worldwide.
If you have specific requirements for wire rope length or need a bulk price list, please visit our lifting equipment inquiry page. Our team is ready to provide you with a customized quote today.
Features:
1.It can rotate 360 degrees without jamming. It is light and easy to use.
2.High end imported steel is selected, with clear grain, fine texture and precise material.
3.The length of the handle is adjustable, easy to use and can be adjusted at will.
4.Select the imported thickened steel, durable.
5.With automatic brake, simple and safe operation, easy hand pull, widely used.
| Model | 1200lbs | 1800lbs | 2600lbs |
| Transverse traction | 500kg | 800kg | 1100kg |
| Longitudinal tension | 150kg | 300kg | 500kg |
| wire rope length (m) | 5/10/15/20/30 | 5/10/15/20/30 | 5/10/15/20/30 |
| control mode | Manual | Manual | Manual |
| wire rope diameter | 4mm | 5mm | 5mm |
| Wheel diameter | 132mm | 180mm | 180mm |
| Mounting holes | 10mm | 10mm | 10mm |
