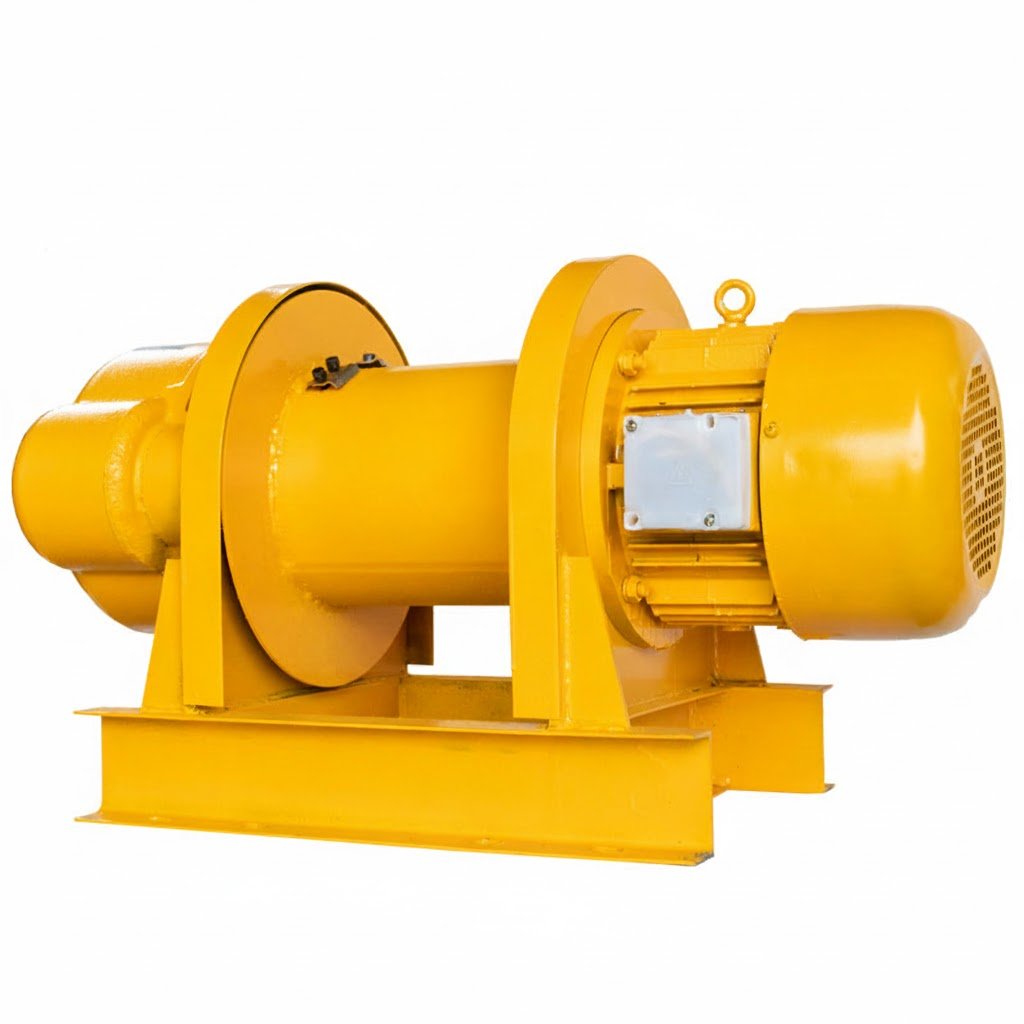

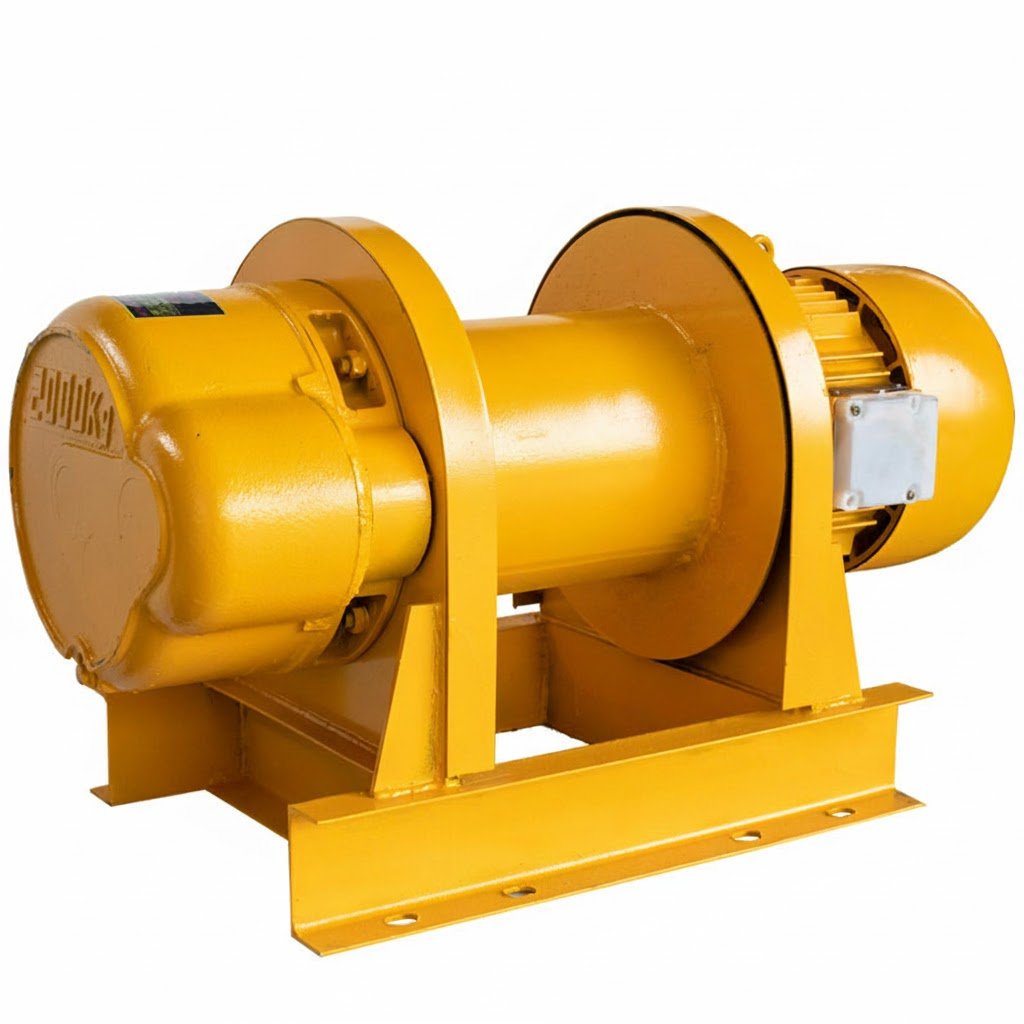

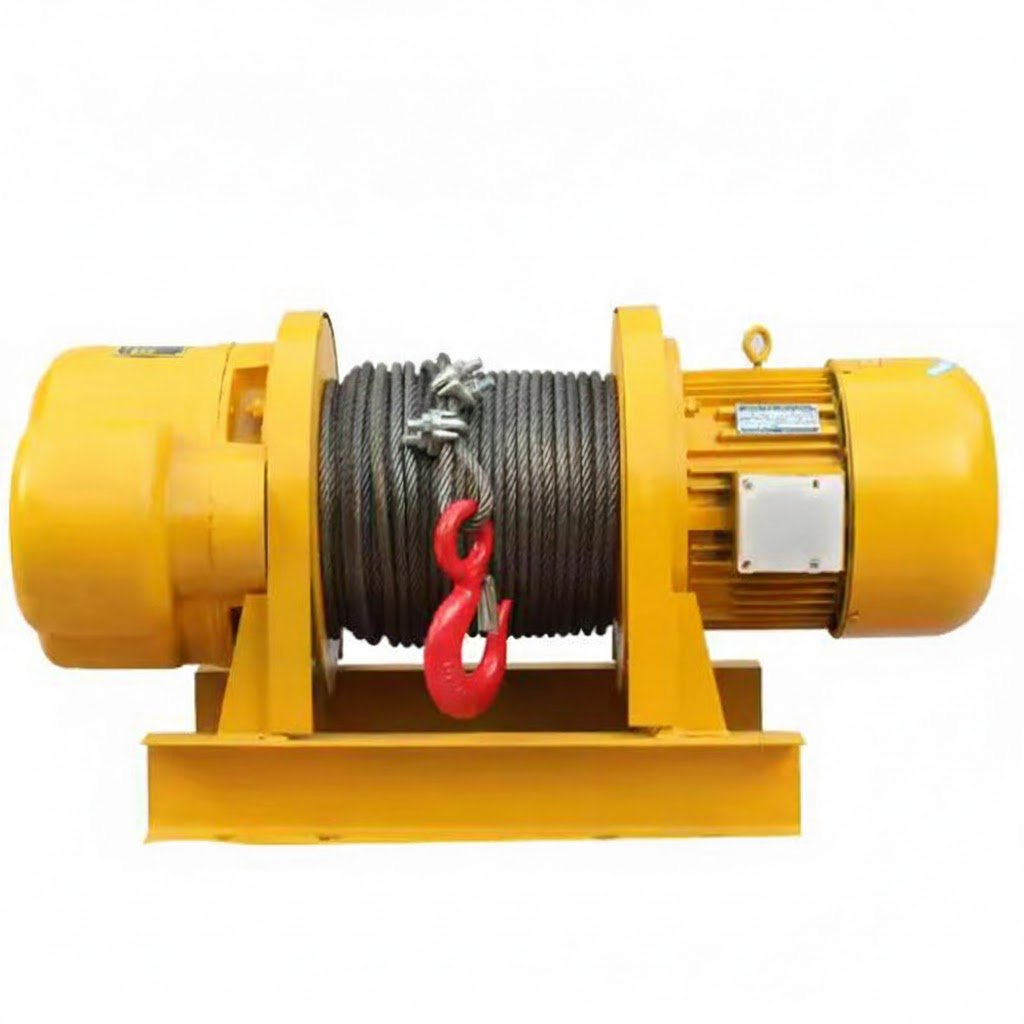

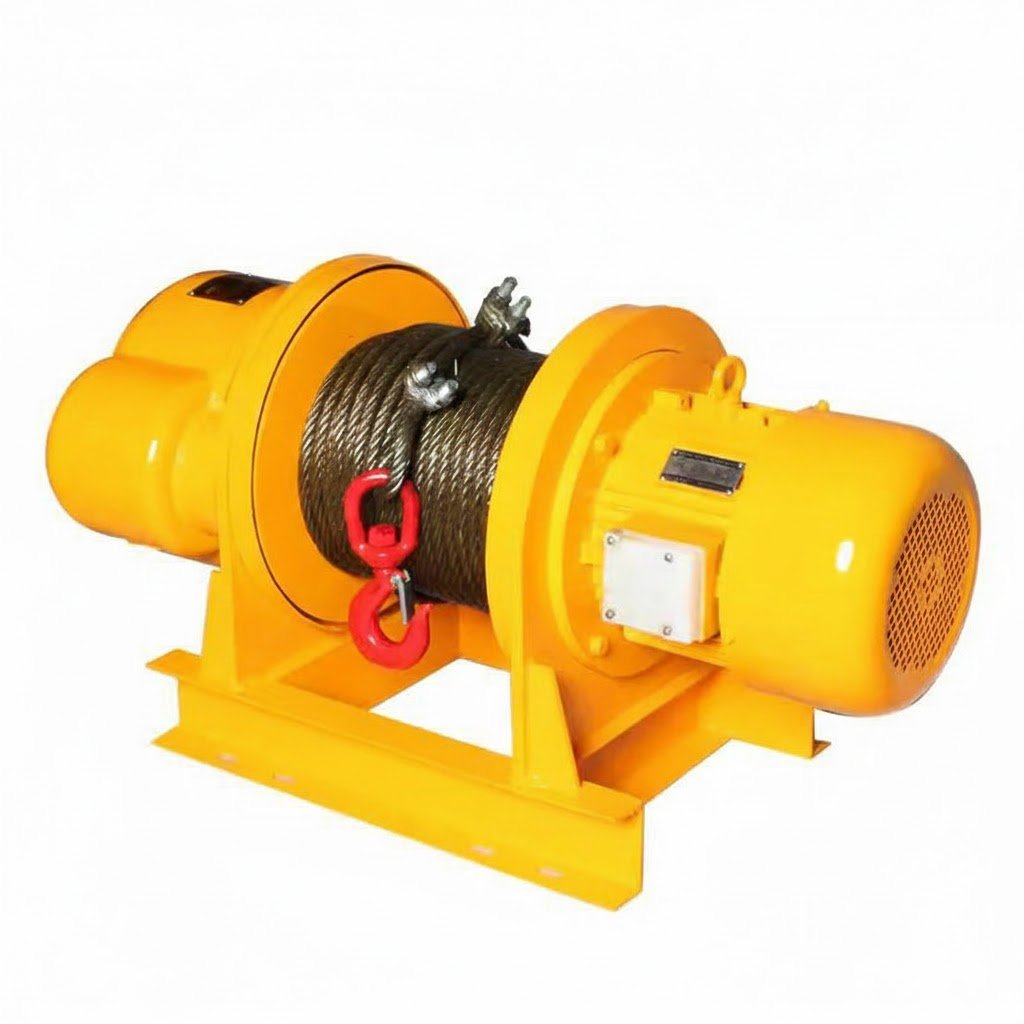

Heavy Duty Electric Winch: High-Capacity Industrial Lifting & Dragging
The Heavy Duty Electric Winch is a versatile and powerful machine designed for the most demanding industrial environments. Available in capacities from 1 ton up to 10 tons, this Heavy Duty Electric Winch operates on a 380V rotate voltage, making it a staple for industrial and mining enterprises, railways, docks, and large-scale warehouses. As a professional lifting equipment supplier , CloudHub provides these winches to ensure smooth, safe, and efficient material handling.
Advanced Cooling and Durable Motor Performance
Our Heavy Duty Electric Winch is engineered to perform under pressure with several standout features:
Pure Copper Motor: High-quality copper windings ensure strong power output, faster heat dissipation, and a significantly longer service life.
Dual Cooling System: In addition to the efficient motor design, a dedicated cooling fan is installed on the side to accelerate heat dissipation, allowing for higher working efficiency during continuous use.
Vertical & Horizontal Versatility: This Heavy Duty Electric Winch is uniquely designed to be dual-purpose; it can be used for vertical lifting or horizontal dragging, providing maximum flexibility on-site.
Industrial Strength Components: From the high-diameter wire rope (up to 15mm) to the rugged frame, every part is built to the same durability standards as premium industrial polyester rigging.
Technical Specifications: 380V Series
We offer a range of models to suit different load requirements. The Heavy Duty Electric Winch provides a consistent lifting speed (8m/min or 16m/min depending on configuration) and varies in power from 1.5kw for the 1T model to 7.5kw for the 5T model.
Weight Capacity: 1T, 2T, 3T, 5T, and custom 10T models.
Wire Rope Diameter: Ranging from 8mm to 15mm for maximum tensile strength.
Robust Dimensions: Machine lengths up to 1100mm with a solid weight of 260kg for the 5T unit, ensuring stability during operation.
Wholesale Availability: This series is a top choice for clients looking for wholesale lifting equipment with industrial-grade specs.
Why Source from CloudHub?
At CloudHub, we specialize in high-torque, heavy-duty machinery that meets international safety protocols. Every Heavy Duty Electric Winch is rigorously tested to ensure it can handle the specified rated load in harsh outdoor or indoor conditions.
If you require a specific wire rope length, custom voltage, or a bulk quote for your project, please visit our lifting equipment inquiry page. Our technical team is ready to provide you with a customized solution and global shipping rates today.
This electric hoist winch contains the following models:
This electric hoist winch contains the following models:
1ton, 2tons, 3tons, 5tons,10tons
The ratate voltage is 380V
Feature：
1.Pure copper motor, fast heat dissipation, longer service life.
2.A fan is installed on side of the motor to dissipate heat faster and increase working efficiency.
3.It can be dragged horizontally or lifted vertically
4.Wide range of applications，welcomed by Industrial and mining enterprises, railways, docks, warehouses
| Model | 1T | 2T | 3T | 5T |
| voltage (v) | 380 | 380 | 380 | 380 |
| power (kw) | 1.5 | 3 | 4.5 | 7.5 |
| Lifting speed | 8m/min；16m/min | 8m/min；16m/min | 8m/min；16m/min | 8m/min；16m/min |
| Wire rope diameter(mm） | 8 | 11 | 13 | 15 |
| Machine length(mm) | 800 | 830 | 950 | 1100 |
| Machine height(mm) | 390 | 510 | 520 | 600 |
| Machine width(mm) | 320 | 430 | 460 | 530 |
| Product weight(kg) | 80 | 130 | 160 | 260 |
