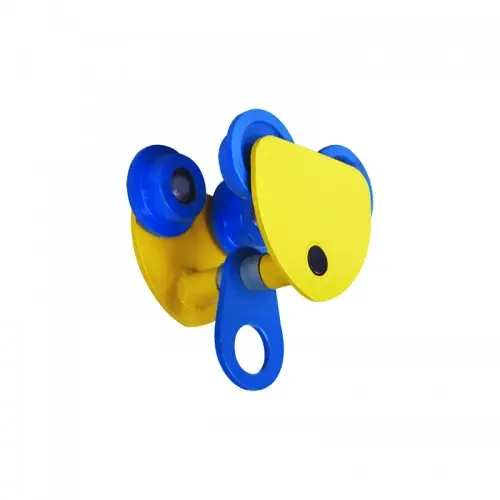

Plain and Geared Trolley: Precision Movement for Overhead Lifting
The Plain and Geared Trolley series serves as the essential mobile foundation for overhead lifting systems. These units allow chain hoists and other lifting devices to travel effortlessly along the lower flange of an I-beam or H-beam. Whether you are managing a small workstation or a massive industrial bay, the Plain and Geared Trolley provides the necessary lateral mobility to transport heavy loads with safety and ease. As a premium lifting equipment supplier , CloudHub offers both push and hand-chained versions to suit your specific operational needs.
Plain vs. Geared: Choosing the Right Mechanical Advantage
Understanding the difference between these two configurations is key to optimizing your rigging setup:
Plain Trolley (Push Type): Ideal for lighter loads and shorter travel distances. The operator simply pushes the suspended load along the beam. Its low Rolling resistance design ensures smooth movement with minimal manual effort.

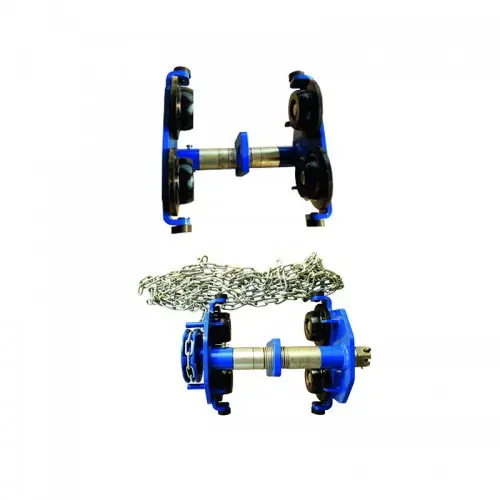

Geared Trolley (Hand Chain Type): Designed for heavy-duty applications and precise positioning. By pulling a hand chain, the operator engages a system of gears that drive the wheels. This provides a significant Mechanical advantage , allowing for the controlled movement of multi-ton loads without physical strain.
Adjustable Width: Both models are equipped with adjustable spacers and washers, making them compatible with a wide range of beam flange widths and profiles.
Engineered for Safety and Longevity
Every Plain and Geared Trolley in our inventory is built to endure harsh industrial environments:
High-Grade Steel Wheels: The dual-tread wheels are designed to fit both tapered and flat beam flanges, featuring sealed ball bearings for a maintenance-free life.
Safety Lugs: Integrated safety lugs serve as bumpers and prevent the trolley from accidental derailment, ensuring compliance with modern workplace safety protocols.
Durable Finish: Coated with high-visibility industrial paint to resist corrosion and ensure the equipment remains easy to inspect during routine safety checks.
Plain and Geared Trolley General Specifications (Customizable)
| Capacity (Tons) | Beam Width Range (mm) | Min. Radius of Curve (m) | Type Available |
| 0.5 Ton | 68 – 120 | 0.8 | Plain / Geared |
| 1 Ton | 75 – 125 | 1.0 | Plain / Geared |
| 3 Tons | 100 – 150 | 1.2 | Plain / Geared |
| 5 Tons | 125 – 175 | 1.4 | Plain / Geared |
| 10 Tons | 125 – 200 | 2.0 | Geared Only |
Reliable Sourcing from CloudHub
At CloudHub, we specialize in providing wholesale lifting equipment that balances cost-efficiency with uncompromising safety. Our trolleys are the perfect partners for our range of manual and electric hoists, creating a complete material handling ecosystem for your facility.
For a detailed technical drawing or a bulk quote on specialized capacities, please visit our lifting equipment inquiry page. Our engineering team is ready to assist with your custom beam configurations.
