Single Sheave Pulley: Essential Rigging for Mechanical Advantage

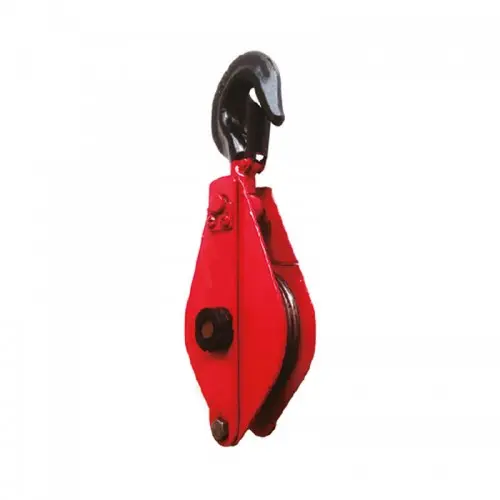

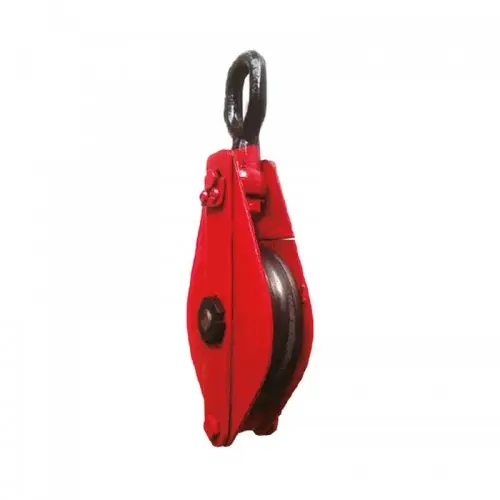

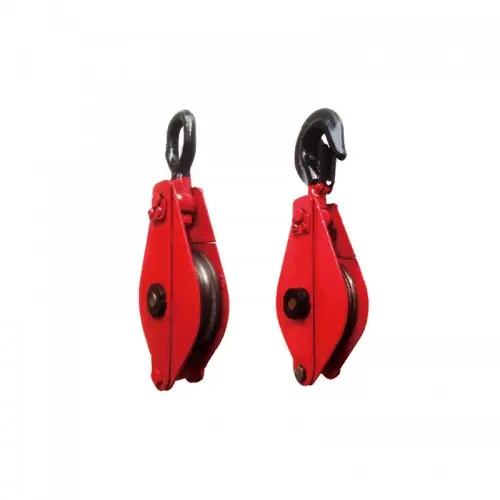

The Single Sheave Pulley, often referred to as a snatch block, is a critical component in rigging and recovery operations. Designed to redirect the path of a wire rope or to double the pulling capacity of a winch, this Single Sheave Pulley provides the necessary mechanical leverage for heavy-duty lifting. As an experienced lifting equipment supplier , CloudHub offers high-performance pulleys engineered to withstand extreme tension and harsh field conditions.
Precision Engineering for Maximum Efficiency
Our Single Sheave Pulley is designed with safety and functionality at its core:
High-Strength Sheave: The wheel (sheave) is precision-machined from alloy steel with a deep groove to prevent wire rope slippage, minimizing wear on the cable and the pulley itself.
Opening Side Design: Most of our heavy-duty models feature a swing-side plate. This allows for quick and easy “reeving”—inserting the rope without having to thread it through the end—saving valuable time on-site.
Force Distribution: Understanding the Vector of force is vital in rigging. Our pulleys are designed to handle the resultant loads when changing line direction, ensuring the frame remains rigid under peak stress.
Self-Lubricating Bushings: Equipped with bronze bushings or heavy-duty roller bearings, the Single Sheave Pulley ensures smooth rotation and reduces friction-induced heat.
Versatile Applications in Industry & Recovery
Whether you are performing a complex lift in a construction zone or an off-road vehicle recovery, the Single Sheave Pulley is a versatile tool. It follows the fundamental principles of Mechanical advantage , allowing smaller power sources to move significantly larger loads. Its compact size makes it an ideal addition to any rigging kit, alongside our manual hoists and trolleys.
Technical Specifications (Standard Series)
| Rated Capacity (Tons) | Wire Rope Dia. (mm) | Sheave Diameter (mm) | Support Type |
| 0.5 Ton | 6 – 8 | 75 | Hook / Shackle |
| 1 Ton | 8 – 10 | 100 | Hook / Shackle |
| 2 Tons | 10 – 12 | 125 | Hook / Shackle |
| 5 Tons | 15 – 18 | 180 | Shackle |
| 10 Tons | 20 – 24 | 250 | Heavy Duty Shackle |
Quality You Can Trust from CloudHub
Every Single Sheave Pulley supplied by CloudHub undergoes rigorous testing to meet its Working Load Limit (WLL). We use forged steel for the load-bearing hooks and shackles to ensure they fail safely by stretching rather than snapping under extreme overload. This commitment to safety is why we are a leader in wholesale lifting equipment .
For custom sheave sizes, stainless steel options for marine use, or a bulk quote, please visit our lifting equipment inquiry page. Our team is ready to provide the technical rigging support you need.
