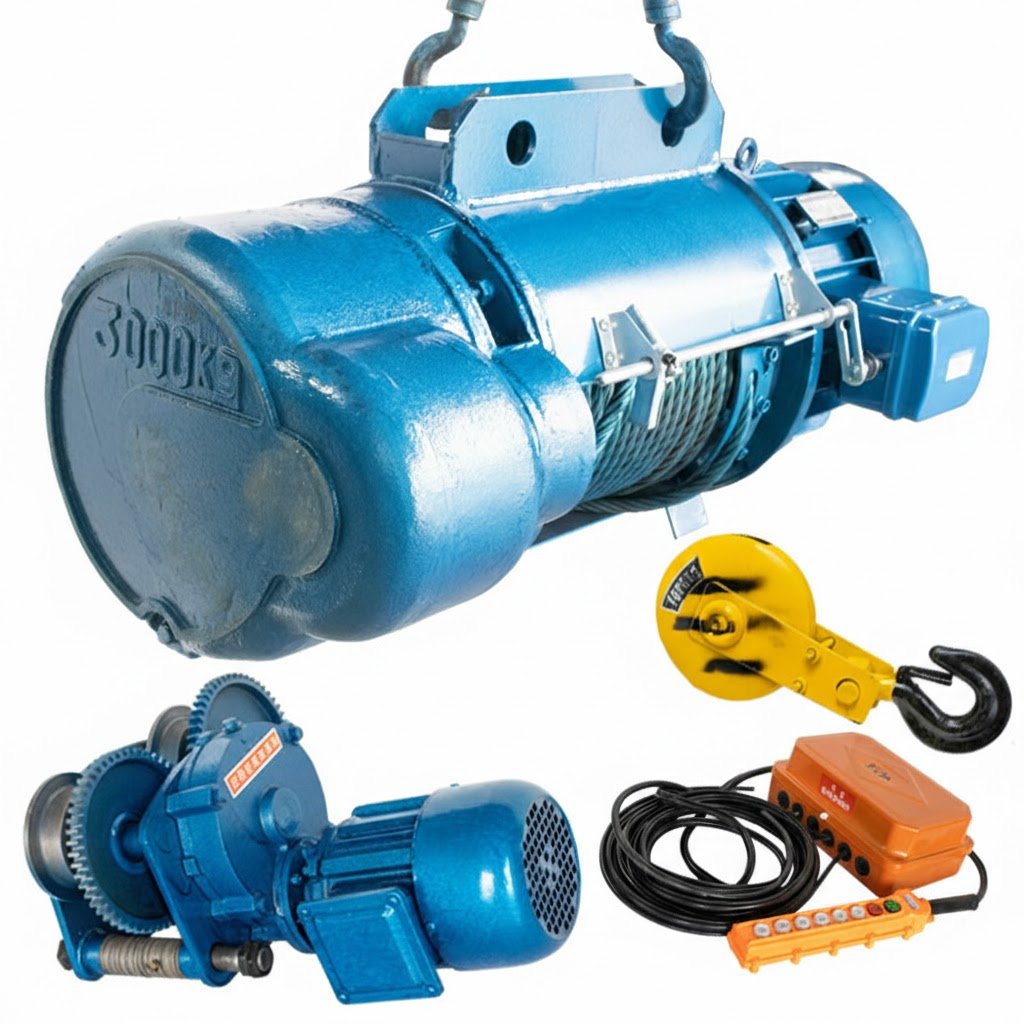

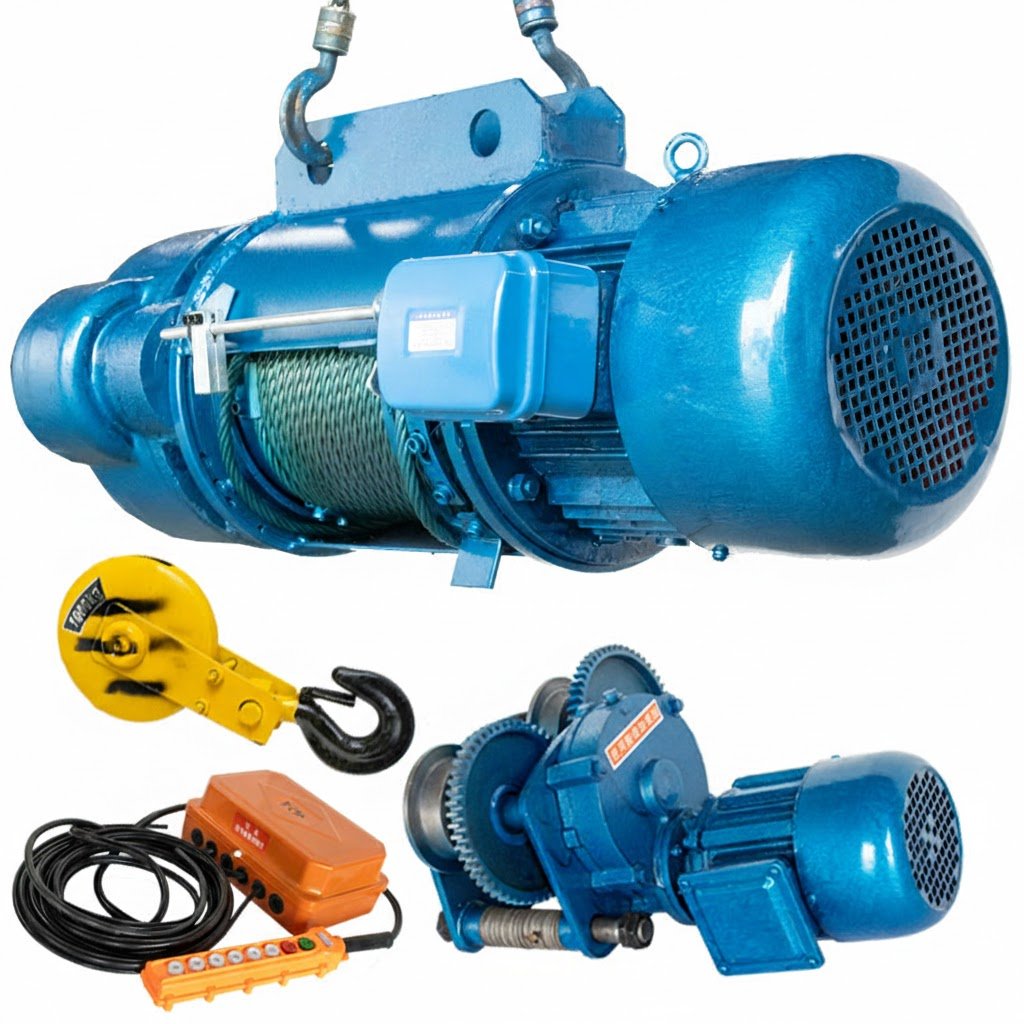

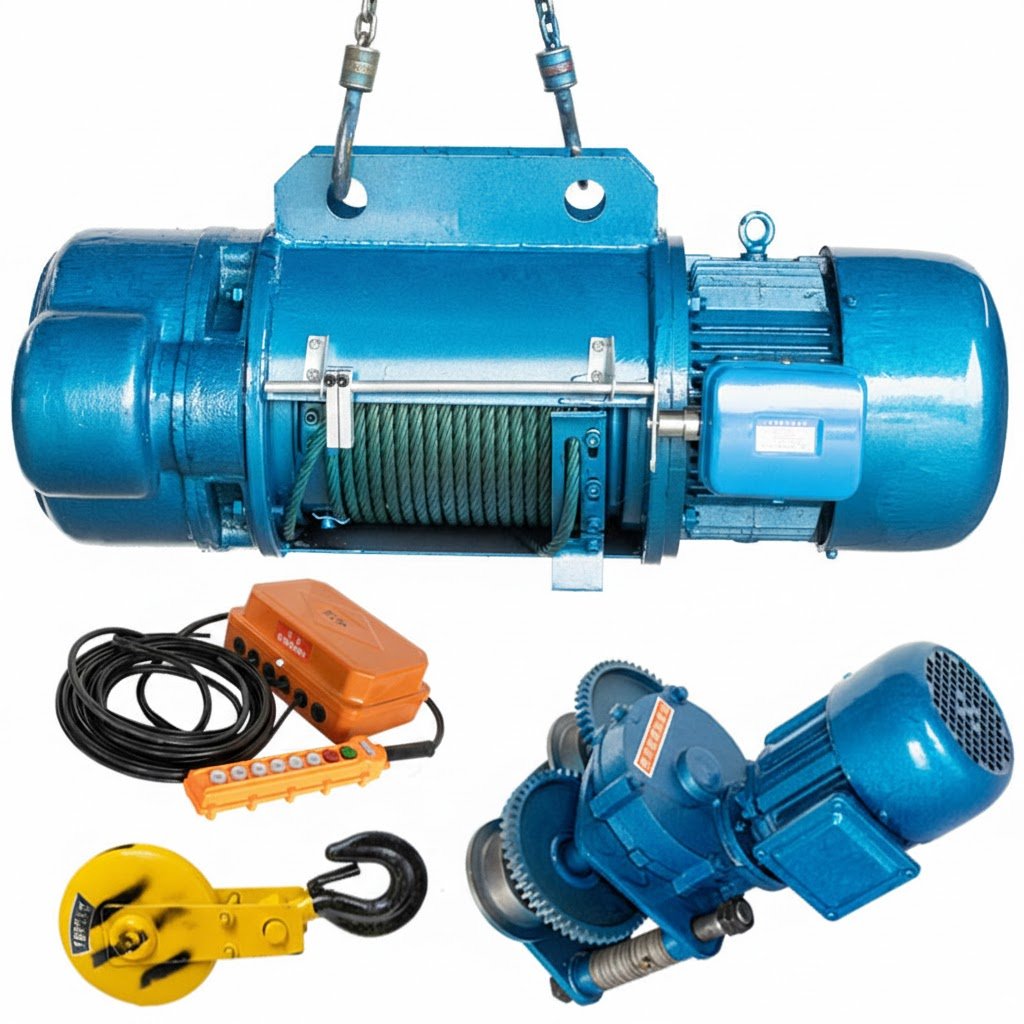

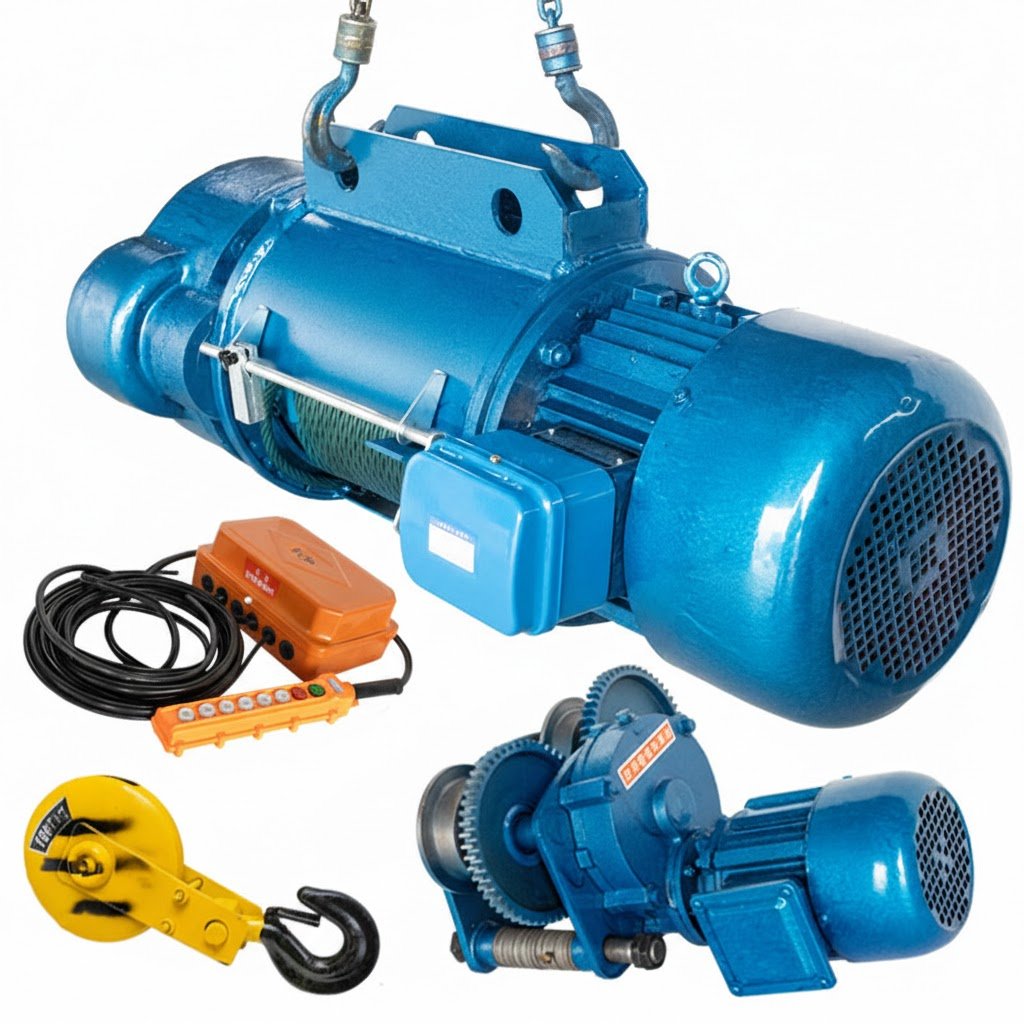

CD1 Wire Rope Electric Hoist: High-Efficiency Industrial Lifting
The Wire Rope Electric Hoist (CD1 type) is a compact, lightweight lifting solution engineered for intense industrial environments. Operating at a standard 380V rotate voltage, this hoist is versatile enough to be installed on single-beam cranes, linear or curved strand beams, and even gourd gantry or jib cranes. As a leading lifting equipment supplier , CloudHub provides CD1 hoists that are trusted by mining enterprises, railways, and dockyards worldwide.
Advanced Motor & Safety Features
At the heart of our Wire Rope Electric Hoist is an asynchronous conical rotor motor with a built-in brake. This design ensures stable starting and effective braking, even under maximum load. +1
Insulation & Protection: Available in B or F class insulation with IP44/IP54 protection ratings.
Durable Build: Features a steel spindle and seamless welding for superior structural integrity, mirroring the high-strength standards of industrial polyester lifting slings.
Control Options: Operators can choose between a standard pendant control or a wireless remote for increased safety and convenience.
Technical Specifications & Customization
Whether you need a standard 1-ton model or a heavy-duty 10-ton configuration, our Wire Rope Electric Hoist is designed for longevity and minimal maintenance. We also support wholesale lifting equipment (提示：内链) orders with custom specifications tailored to your specific rail width or lifting height requirements.
Model Detail CD1 Series Specifications Lifting Capacity 0.5t / 1t / 2t / 3t / 5t / 10t (Custom up to 40t) Lifting Height Standard 6m, 9m, 12m, 18m, 24m, 30m Hoisting Speed 8 m/min (Standard) / 7 m/min (for 10t) Traveling Speed 20 m/min or 30 m/min Working System Intermediate FC=25%, M3 Duty Class
Why Choose CloudHub for Your Hoisting Needs?
Every Wire Rope Electric Hoist from CloudHub undergoes rigorous load testing and inspection to ensure IP54/IP55 compliance. Our modular design allows for easy parts replacement and daily maintenance, making it a cost-effective choice for long-term operations.
For bulk pricing or to request a customized technical drawing, please visit our lifting equipment inquiry page. Our engineering team is ready to help you optimize your material handling workflow.
The ratate voltage 380V
installed in a single beam cranes, linear, curve strander beams.
also used together with double beam, gourd gantry crane, jib crane
welcomed by Industrial and mining enterprises, railways, docks, warehouses
Main Feature:
single speed; strong lifting capacity: 0.5t~10t, even more; max 30m lifting height; pendent & remote control
Motor:
1. Asynchronous Conical rotor motor with brake inside
2. Stable starting, effective braking
3. Safe usage and easy maintenance
4. B or F class insulation, IP44, IP54 protection
5. Control method: pendant or remote
| Type | CD1 | ||||
| Lifting weight(T) | 0.5 | 1 | 2 | 3 | 5 |
| Lifting height(m) | 2003/6/9 | 6/9/12/18/24/30 | |||
| Hoisting speed(m/min) | 8 | 7 | |||
| Travelling speed(m/min) | 20 | 20/30 | |||
| NO of connecting | 120 | ||||
| Working system | Intermediate FC=25% M3 | ||||
| Power source | 380V 50HZ 3phs or made to order | ||||
