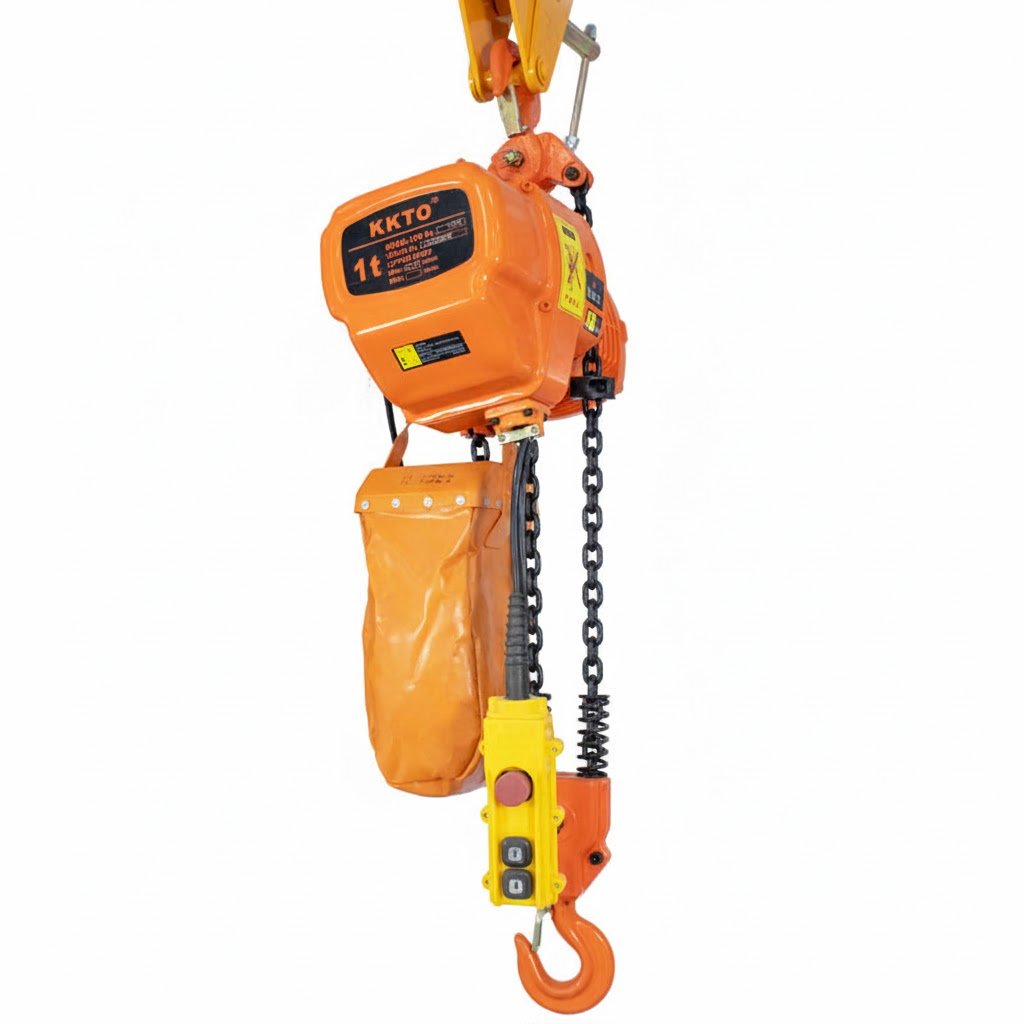

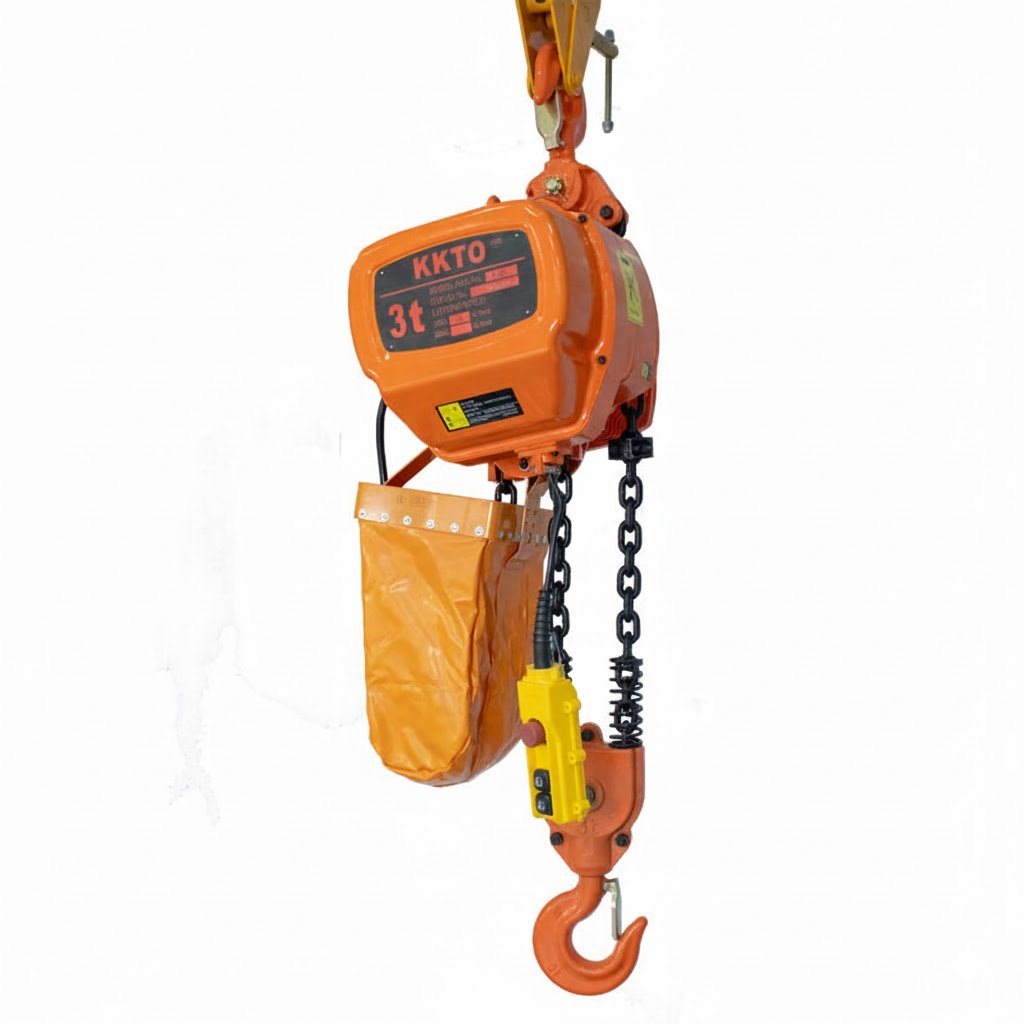

HHBB Electric Chain Hoist: Professional Grade Heavy-Duty Lifting
The HHBB Electric Chain Hoist is a premium industrial lifting solution designed for high-performance applications across various sectors. With a massive lifting capacity ranging from 500kg up to 30 tons, the HHBB Electric Chain Hoist is available in both hook type and trolley type configurations. As a leading lifting equipment supplier with rich production experience, CloudHub ensures every HHBB unit delivers the reliability and safety required for heavy industrial work.
Advanced Engineering and Certified Safety
What sets the HHBB Electric Chain Hoist apart is its commitment to international standards and robust build quality:
CE Certification: All our HHBB models are CE certified, ensuring they meet rigorous European safety and quality requirements.
G80 Load Chain: Equipped with high-quality G80 manganese steel chains for superior durability and wear resistance.
Forged Strength: The hooks are hot forged to achieve perfect strength, making them extremely hard to break even under peak loads.
Customizable Protection: For outdoor or hazardous use, the HHBB Electric Chain Hoist can be equipped with rain covers, travel limiters, and overload limiters.
Voltage Flexibility: We support three-phase voltages from 220V to 690V (50/60Hz), and can even produce specialized single-phase versions upon request.
Durable Components: The internal gears and motor are designed to handle the same level of stress as high-tenacity polyester rigging products.
Versatile Control and Customization Options
The HHBB Electric Chain Hoist offers a variety of control and performance options to fit your facility’s needs. Choose between high-quality push-button pendants or long-range remote controls for safer operation. Whether you need a single-speed model for steady movement or a dual-speed model for precision positioning, our hoists can be tailored to your specifications. This flexibility is a key reason why CloudHub is a preferred partner for wholesale lifting equipment .
Technical Performance Table
| Capacity (Tons) | Lifting Speed (m/min) | Motor Power (kw) | Chain Spec (mm) | Test Load (T) |
| HHBB Hoist 0.5T | 6.8 | 0.75 | 6.3 | 0.625 |
| HHBB Hoist 1.0T | 6.6 | 1.5 | 7.1 | 1.25 |
| HHBB Hoist 2.0T | 6.6 | 3.0 | 10.0 | 2.5 |
| HHBB Hoist 5.0T | 2.7 | 3.0 | 11.2 | 6.25 |
Reliable Sourcing from CloudHub
At CloudHub, we understand that industrial environments demand equipment that doesn’t fail. Every HHBB Electric Chain Hoist can be finished in your choice of color—blue, yellow, orange, or red—to match your brand identity.
For a comprehensive technical drawing, custom voltage requirements, or a bulk quote, please visit our lifting equipment inquiry page. Our team of specialists is ready to provide the professional support your business deserves.
1. We are professional with electric chain hoist with rich production experience

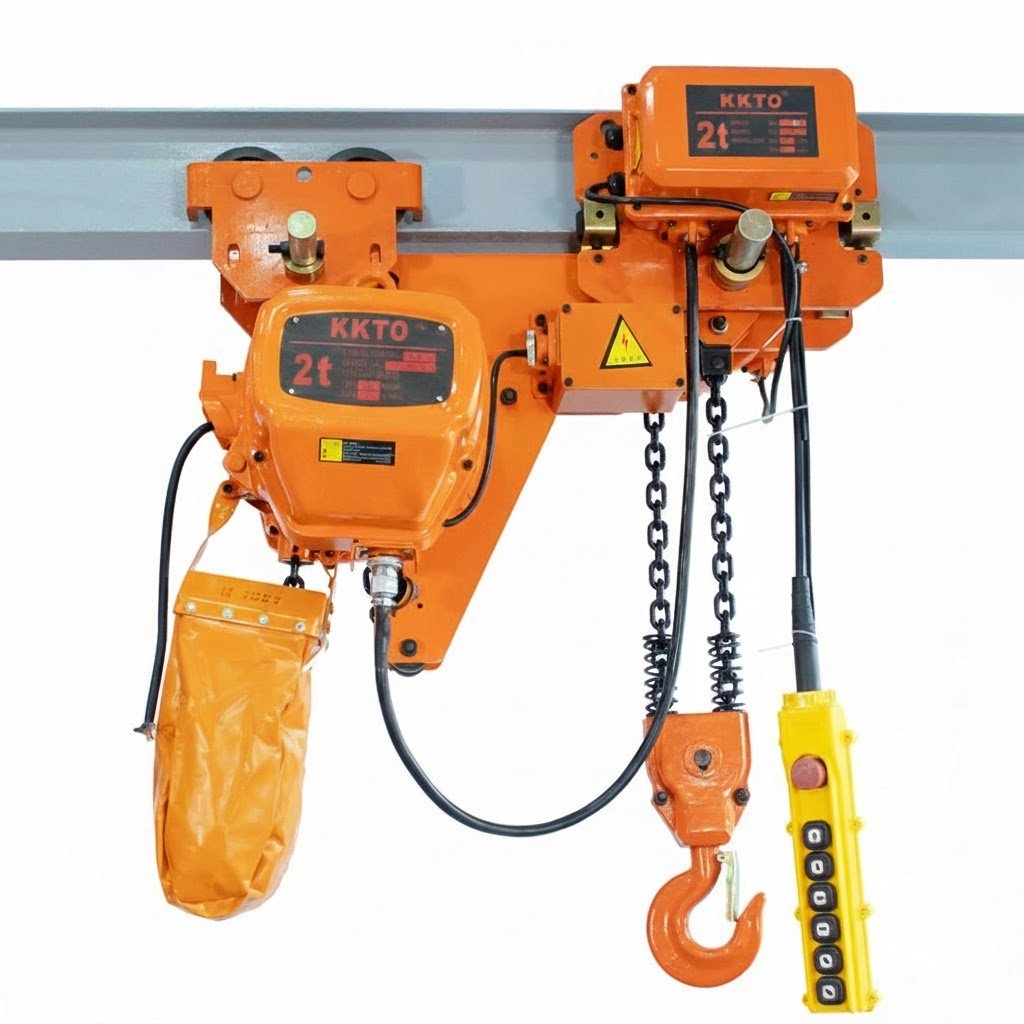

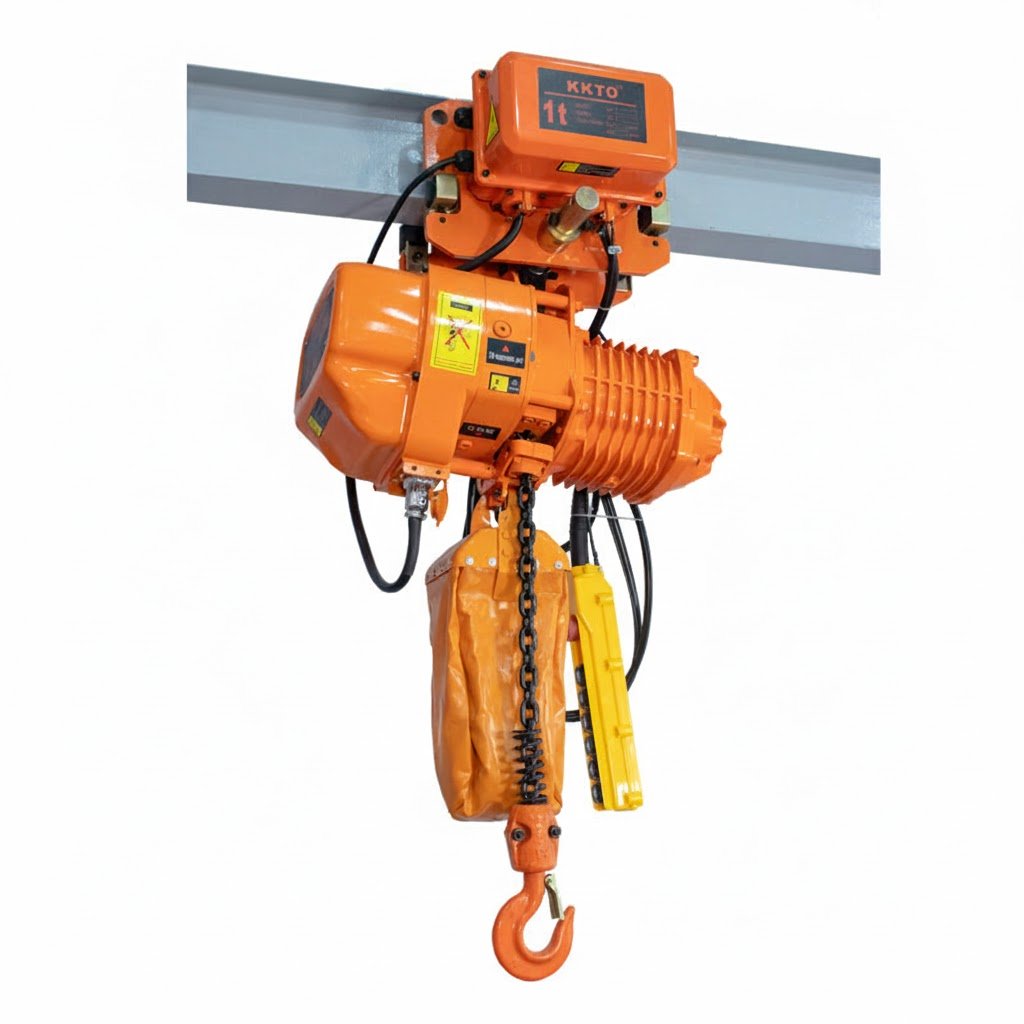

2. Electric chain hoist lifting capacity from 500kg to 30Ton, hook type or trolley type .
3. All the electric chain hoist have CE certification.
4. G80 chain with good quality.
5. Hook be hot forged with perfect strength , hard to break.
6. Push button, remote control with high quality.
7. Electric chain hoist can be equipped with rain cover , travel limiter , overload limiter.
8. Single speed or dual speed as your required.
9. Three phase electric chain hoist : voltage from 220V -690V , 50/60HZ , 3 phase, and we can also produce single phase chain hoist.
10. Color can be made as your required : blue , yellow , orange , red , etc.
The special specification could be customized according to customer requirements.
| Capacity(t) | 0.5 | 1 | 1.5 | 2 | 2.5 | 5 | |
| Standard Lifting Height(m) | 3 | ||||||
| Lifting Speed(m) | 6.8 | 6.6 | 8.8 | 6.6 | 5.4 | 2.7 | |
| Lifting Motor | Power(kw) | 0.75 | 1.5 | 3 | 3 | 3 | 3 |
| Rotation Speed(r/min) | 1440 | ||||||
| Phases | 3 | ||||||
| Lifting Voltage(v) | 200~460 | ||||||
| Lifting Frequency(Hz) | 50/60 | ||||||
| Chain Turns | 1 | ||||||
| Chain Specification | 6.3 | 7.1 | 10 | 10 | 11.2 | 11.2 | |
| Test Load(T) | 0.625 | 1.25 | 1.875 | 2.5 | 3.125 | 6.25 | |
| Weight(kg) | 47 | 61 | 108 | 115 | 116 | 151 | |
| Weight Added with 1m Higher(kg) | 0.81 | 1.1 | 2.3 | 2.3 | 2.8 | 5.6 | |
